YES... I DO!

RAINWATER SYSTEM GIZA

top quality products with great durability that make you easily say... YES

12 PARTS

GIZA rainwater system consists of 12 main parts and they're easily adapt to every need of installation.

3 COLORS

GIZA rainwater system is available in 3 basic colors.
Brown RAL8017 - White RAL9003 - Red RAL3004

WIDTH

The gutter width is 120 mm

DIAMETER

The downpipe diameter is 85 mm

LENGTH

The downpipe and gutter length is 3m

TEMPERATURE

Operation of the system in the temperature range t° from - 40oC to + 60oC

UV RADIATION

Resistance to UV-radiation

DURABILITY

High impact resistance at low temperature

WEIGHT STRENGTH

Withstands heavy loads up to 75kg

U-PVC

made of optimal quality U-PVC and under the highest standards

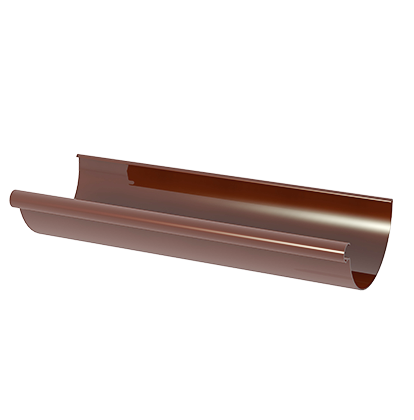

1. GUTTER

120 mm. It is designed for collecting water from the roof.

2. GUTTER UNION

It is used for joining two gutters. 120mm

3. GUTTER FASCIA BRACKET

It is used for fastening the gutter to the fascia board. 120mm

4. RUNNING OUTLET

It carries the water from the gutter into the downpipe. 120 x 85 mm

5. LEFT GUTTER ENDCAP

It hermetically seals the left end of the gutter. 120 mm

6. RIGHT GUTTER ENDCAP

It hermetically seals the right end of the gutter. 120 mm

7. EXTERNAL GUTTER ANGLE 90o

It is used for a change in direction of the gutter on external corners of the roof. 120 mm

8. INTERNAL GUTTER ANGLE 90o

It is used for a change in direction of the gutter on internal corners of the roof. 120 mm

9. DOWNPIPE

It carries the water from a running outlet. 3m

10. DOWNPIPE CONNECTOR

It joins two downpipes or a downpipe and a running outlet. 85 mm

11. DOWNPIPE BRACKET

It fastens the downpipe to a house wall. 85 mm

12. SOCKET BEND 67o

It will help redirect the water from the running outlet to the downpipe, it ends the downpipe from the bottom. 85 mm

GIZA RAINWATER SYSTEM FEATURES

Giza withstands rain flow capacity that does not exceed 75mm / hour
and the roof that has been installed is not bigger than 240m2

With the mathematic formula below you can easily calculate
the square meters of the roof where Giza will be installed.

installation for a roof up to 120m2

installation for a roof up to 180m2

installation for a roof up to 240m2

OPEN THE DIGITAL CATALOGUE

within the catalogue you can find basic installation instructions.
